Premium Cinema Prime Lens

XEEN Meister

Fastest T1.3 full-frame cine prime lens
Unprecedented resolution supporting 8K
A clean, sharp, consistent look for digital cinema

  • 14mm T2.6
  • 24mm T1.3
  • 35mm T1.3
  • 50mm T1.3
  • 85mm T1.3

8K & Fastest T1.3
Premium Cinema
Prime Lens

XEEN Meister has the outstanding resolution supporting 8K on the full-frame cameras. It is the fastest full-frame cine prime lens with T1.3, producing excellent low-light performance. Additionally, a bright T1.3 aperture maximizes the dramatic effect with an extremely shallow depth of field. 13 sheets of aperture blades create the natural-looking background and round bokeh to express the delicate emotions of people while richly depicting the shot.
※ All T1.3 aside from the 14mm (T2.6)

Lens Meta Data Recording

It supports /i Technology protocol(PL mount only), which enables cameras to automatically record the accurate lens meta data. This makes production and post-production more effectively.

Premium Material
Premium Design

Built using titanium, these high-quality premium cinema lenses are ready to fit onto a selection of lens mounts adding luxury through future-oriented design. Titanium is applied to the front barrel, making this lens more robust and durable. The 114mm standard front diameter size and the unified positions of the aperture and focus gear rings, make it easy to attach and detach lens accessories such as Matte Box or Follow Focus.
※ XEEN Meister 14mm T2.6 Front Diameter: 134mm

Outstanding
Usability

It can be mounted on various cameras for three mount options: PL, Canon EF, and Sony E mount.

All scales, including focal length and aperture values, are on both sides of the lens and with the luminous font that glows in the dark, enabling convenient verification and operation, even in low light environments.

300 ° wide focus gear rotation angle makes you adjust focus minutely.

Luminous

1

1. 8K Outstanding Resolution

XEEN Meister lenses offer unprecedented resolution
in all areas of the image, supporting 8K
on the full-frame cameras

2

2. Lens Meta Data Recording

/i Technology, which enables cameras to automatically record the lens meta data, is applied, making production and post-production more effective
(PL Mount Only)

3

3. Titanium Front Barrel

Titanium is equipped to the front part of the barrel, making it both light and durable

4

4. Fastest T1.3 Cinema Prime

Color-matched across the full range and features super-bright T-stops of T1.3. The 13 aperture blades produce excellent low-light performance, extremely shallow depth of field, and beautiful bokeh
※ All T1.3 aside from the 14mm (T2.6)

5

5. Wide Focus Gear Rotation Angle

300 ° wide angle of rotation enables fine focus adjustment

6

6. Luminous Font

All scales, including focal length and aperture values,
are treated with bright luminous paint for convenient use, even in low light environments

7

7. Premium Barrel Design

Premium barrel design is adopted with the laser-engraved XEEN Meister logo

8

8. Bidirectional Scale

The focus and aperture values are displayed on both sides of the lens, enabling easy verification and operation from either side

9

9. PL, EF, E Mount

Three mount options for mounting on a variety of cameras

10

10. X-Coating

Provides a distinctive look by controlling internal reflection, flare, and ghosting, and produces dramatic images

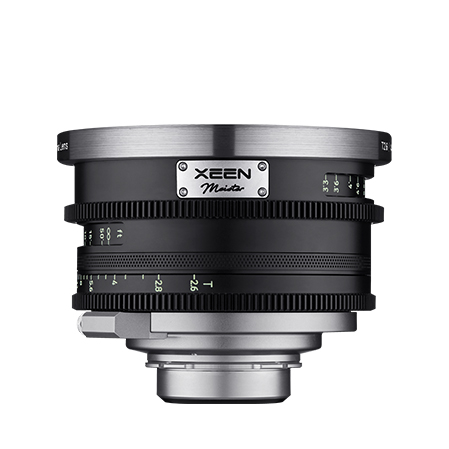

XEEN Meister 14mm Front

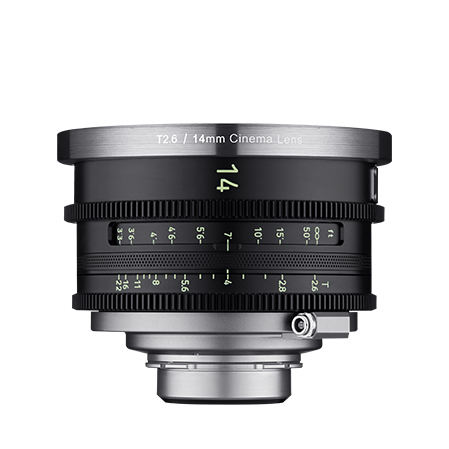

XEEN Meister 14mm Side

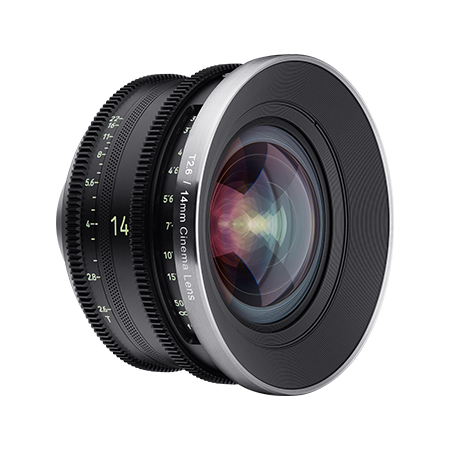

XEEN Meister 14mm

XEEN Meister 24mm Front

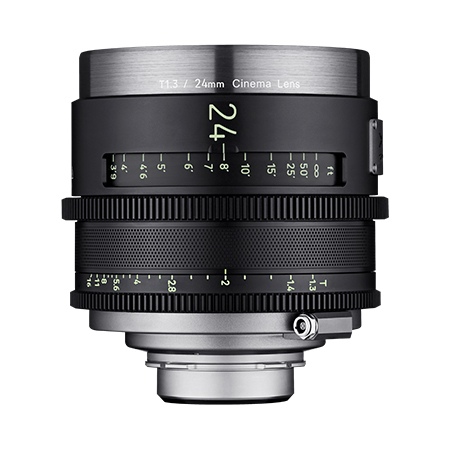

XEEN Meister 24mm Side

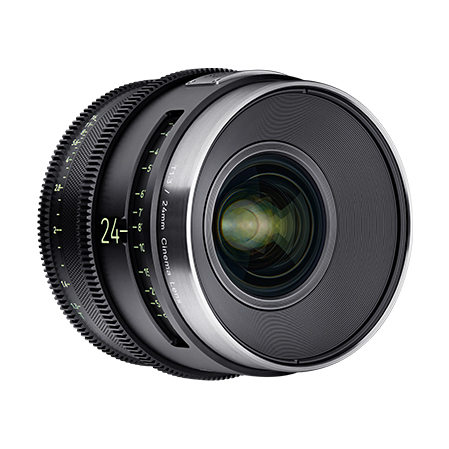

XEEN Meister 24mm

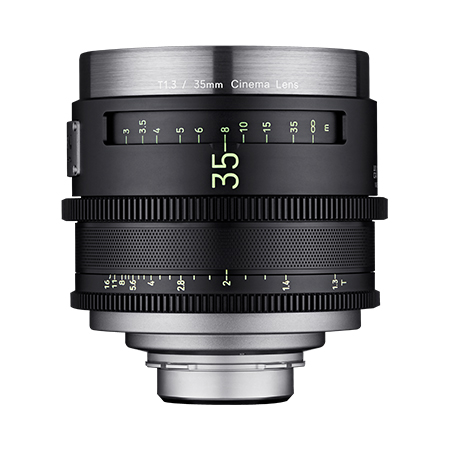

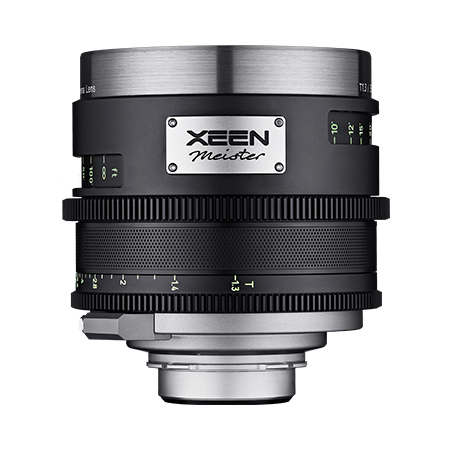

XEEN Meister 35mm Front

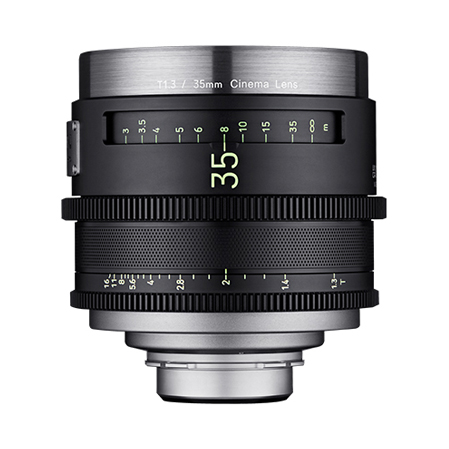

XEEN Meister 35mm Side

XEEN Meister 35mm Side

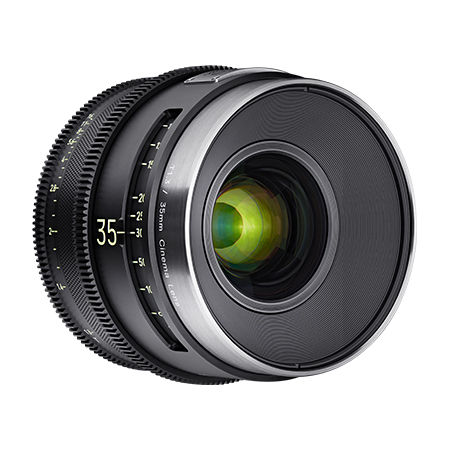

XEEN Meister 35mm

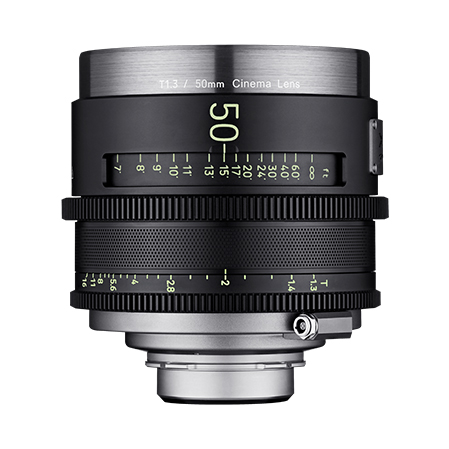

XEEN Meister 50mm Front

XEEN Meister 50mm Side

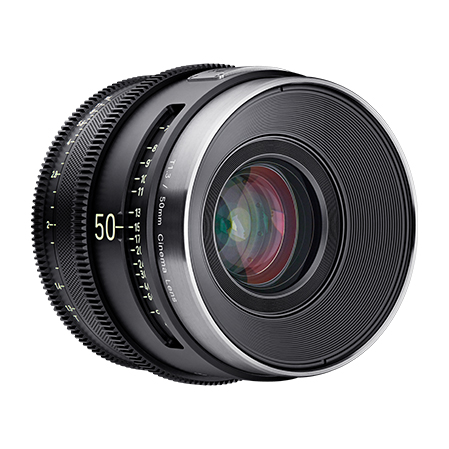

XEEN Meister 50mm

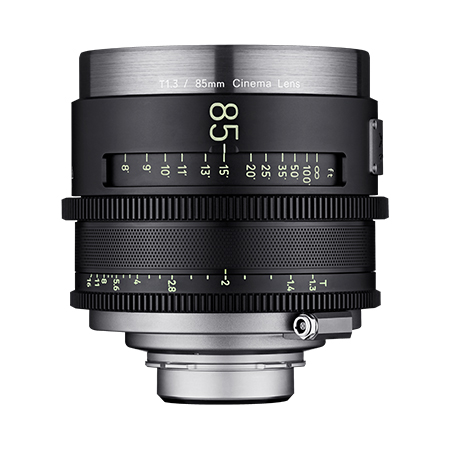

XEEN Meister 85mm Front

XEEN Meister 85mm Side

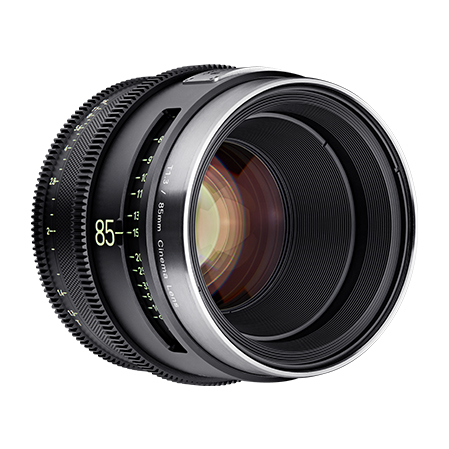

XEEN Meister 85mm

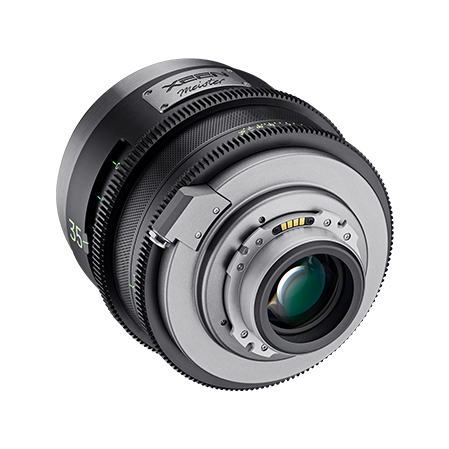

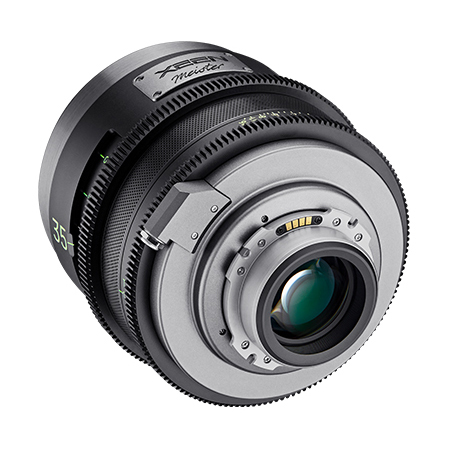

XEEN Meister i/Technology

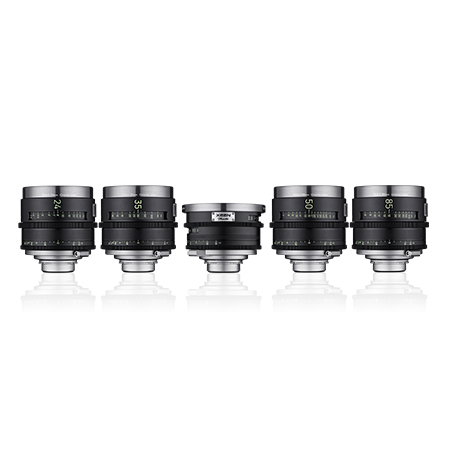

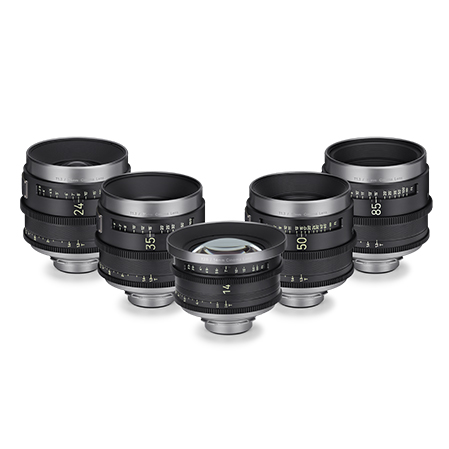

XEEN Meister

XEEN Meister

LOOK & FEEL

QUOTES

QUOTES

MARK HOBZ

"The XEEN Meister lenses are uniform and consistent across all focal lengths.
Color, fall-off, bokeh, and breathing are uniform and don’t break the storytelling of your visual.
Making these perfect for long narratives."



STEVE GAINER (ASC)

"It's holding wonderfully well even when that headlight of the car actually pounding the lens.
People all look beautiful, the bokeh in the background is gorgeous.
XEEN Meister lenses are fantastic!”

VIDEO ROOM

  • XEEN Meister

    [Showreel] Full Version

  • XEEN Meister

    [Showreel] Behind The Scene

  • XEEN Meister

    [Showreel] Short Version

  • XEEN Meister

    [Interview] Mark Hobz

  • XEEN Meister

    [Showreel] Look & Feel

  • XEEN Meister

    [Interview] Steve Gainer, ASC

XEEN Meister SPECIFICATIONS

XEEN Meister Specifications
Model Name XEEN Meister 14mm T2.6 XEEN Meister 24mm T1.3
Maximum T-stop T2.6 T1.3
Image Circle Ø 43.2mm Ø 43.2mm
Angle of View Full Frame ¹ 114.1˚ 85.0˚
Super 35 ² 95.1˚ 66.3˚
Focusing Range ∞ to 0.35 m ∞ to 0.35 m
∞ to 1’ 1.8” ∞ to 1’ 1.8”
Front Diameter Ø 134 mm Ø 114 mm
Number of Aperture Blades 13 13
Rotation Angle of Focus Ring 300° 300°
Rotation Angle of Aperture Ring 79° 94°
Mount PL Canon EF Sony E PL Canon EF Sony E
Size Ø134.0 x 92.9 mm Ø134.0 x 100.9 mm Ø134.0 x 126.9 mm Ø128.0 x 122.0 mm Ø128.0 x 130.0 mm Ø128.0 x 156.0 mm
Weight (without Lens cap) 1.5 kg / 3.3 lbs 1.5 kg / 3.3 lbs 1.7 kg / 3.8 lbs 2.0 kg / 4.4 lbs 2.0 kg / 4.4 lbs 2.2 kg / 4.8 lbs
Model Name XEEN Meister 35mm T1.3 XEEN Meister 50mm T1.3 XEEN Meister 85mm T1.3
Maximum T-stop T1.3 T1.3 T1.3
Image Circle Ø 43.2mm Ø 43.2mm Ø 43.2mm
Angle of View Full Frame ¹ 64.5° 46.6° 28.5°
Super 35 ² 44.4° 31.0° 19.0°
Focusing Range ∞ to 0.34 m ∞ to 0.45 m ∞ to 0.80 m
∞ to 1’ 1.4” ∞ to 1’ 5.7” ∞ to 2’ 7.5”
Front Diameter Ø 114 mm Ø 114 mm Ø 114 mm
Number of Aperture Blades 13 13 13
Rotation Angle of Focus Ring 300° 300° 300°
Rotation Angle of Aperture Ring 92° 92° 92°
Mount PL Canon EF Sony E PL Canon EF Sony E PL Canon EF Sony E
Size Ø128.0 x 122.0 mm Ø128.0 x 130.0 mm Ø128.0 x 156.0 mm Ø128.0 x 122.0 mm Ø128.0 x 130.0 mm Ø128.0 x 156.0 mm Ø128.0 x 122.0 mm Ø128.0 x 130.0 mm Ø128.0 x 156.0 mm
Weight (without Lens cap) 1.9 kg / 4.2 lbs 2.0 kg / 4.4 lbs 2.2 kg / 4.8 lbs 2.3 kg / 5.1 lbs 2.1 kg / 4.6 lbs 2.3 kg / 5.1 lbs 1.9 kg / 4.2 lbs 1.9 kg / 4.2 lbs 2.1 kg / 4.6 lbs
¹ Full Frame (aspect ratio 1:1.5, dimensions 36mm x 24mm / 1.42" x 0.94")
² Super 35 (aspect ratio 1:1.3, dimensions 24.9mm x 18.7mm / 0.98" x 0.74")
