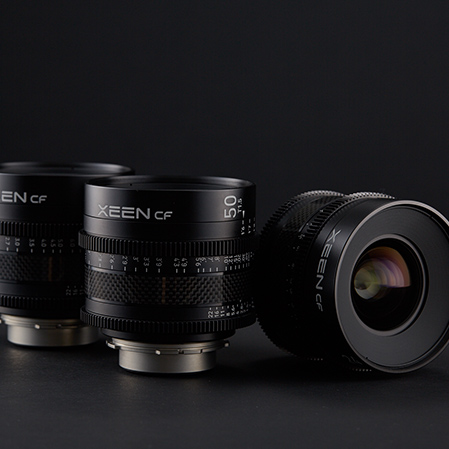

XEEN CF

Compact & Flexible cine prime lens
with five focal lengths compatible
with the latest cameras of PL, Canon EF and Sony E mount

  • 16mm T2.6
  • 24mm T1.5
  • 35mm T1.5
  • 50mm T1.5
  • 85mm T1.5

WHY XEEN CF

XEEN CF Cine Prime lenses are ultra-lightweight, high performance cine prime lenses for large image sensors.

In order to cope with changes in the imaging environment where the equipment becomes smaller and lighter,
the XEEN CF R&D team started an innovation from the basic materials of the lens.

Carbon Fiber is widely used in the aviation and automotive industry for its light and robust properties,
but it is difficult to mold and therefore has not been utilized in the highly precise optics industry.

Researchers selected Carbon Fiber as the main material to maintain robustness and reduce lens weight.
After years of efforts to shape fibers into specific shapes and sizes and graft them into sensitive and fragile glass parts,
we have finally made carbon fiber usable for XEEN CF.

The use of carbon fiber in the exterior reduces unnecessary weight and enhances rigidity.
Less than 1kg (0.9lbs) of lightweight body can flexibly respond to various shooting environments and capture various
images including weight-sensitive equipment such as drones and gimbals.

With its outstanding resolution that supports 8K and its unique X-Coating Technology,
it expresses performers’ delicate emotions in full detail.

The bright aperture of the T1.5 delivers beautiful bokeh, shallow depth of field and excellent low light performance.

Winning the award at the German iF Design Award for its ease of use, XEEN CF is also well-received for its futuristic design.

Carbon Fiber
- Compact & Flexible

By applying carbon fiber, which is lighter than metal but solid and beautiful, to the lens body tube, it remains lightweight while maintaining durability

It is designed to be small and light so it can be mounted on numerous cameras and used more flexibly in a variety of environments.

8K & Cinematic look

It has the outstanding resolution supporting a large image sensor and 8K. Additionally, it offers beautiful bokeh with a bright T1.5 aperture and maximize the delicate emotions of people while richly depicting the shot.

X-Coating

By applying our proprietary X-coating technology, it effectively controls the reflection of light inside and within the lens itself to create a distinctive look. Properly utilizing flares and ghosting, you can create dramatic effects.

Outstanding
Usability

The front aperture (95mm), focus, and aperture ring gear positions are unified, making it easy and convenient to attach and detach lens accessories such as Matte Box and Follow Focus. In addition, the ultra-bright luminous font allows for convenient use in dark environments.

Luminous

1

1. Ø95 Front Size

Designed to 95mm standard front diameter size it is compact in size and easily compatible with Matte Box

2

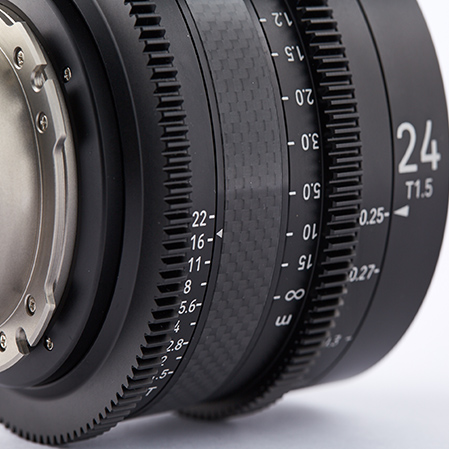

2. Carbon Fiber

Carbon fiber is applied to part of the body tube, making it both light and durable

3

3. Compatible with
the large image sensors

Compatible with the latest cameras that adopt large image sensors such as Full Frame, Large Format, and Vista Vision

4

4. PL, EF, E mount

Three mount options for mounting on a variety of cameras
* LPL mounting is available when using an adapter

5

5. 11 sheet aperture

11 sheets are applied for bokeh close to original and beautiful background blur

6

6. X-Coating

Provides a distinctive look by controlling internal reflection, flare, and ghosting, and produces dramatic images

7

7. Luminous font

All scales, including focal length and aperture values, are treated with bright fluorescent paint for convenient use, even in low light environments

8

8. Improvement of Focus,
Aperture Gear usability

Focus ring and aperture ring locations are uniform across all models, gear design and weight were improved for rotation

9

9. Wide Focus Gear
rotation angle

200 ° wide angle of rotation enables fine focus adjustment

10

10. Bidirectional Scale

The focus and aperture values are displayed on both sides of the lens, enabling easy verification and operation from either side

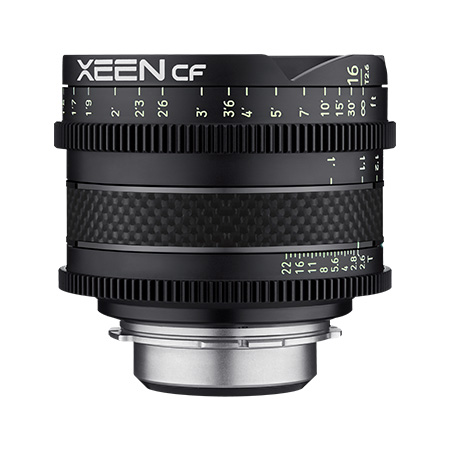

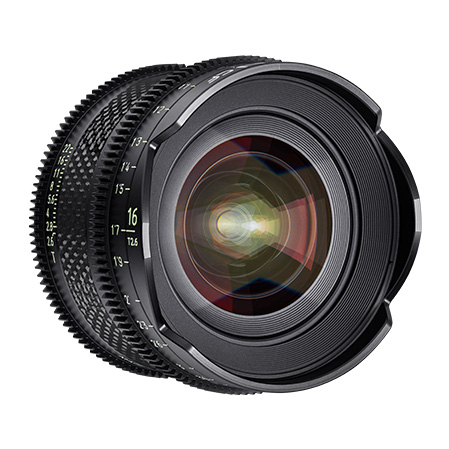

XEEN CF 16mm

XEEN CF 16mm Front

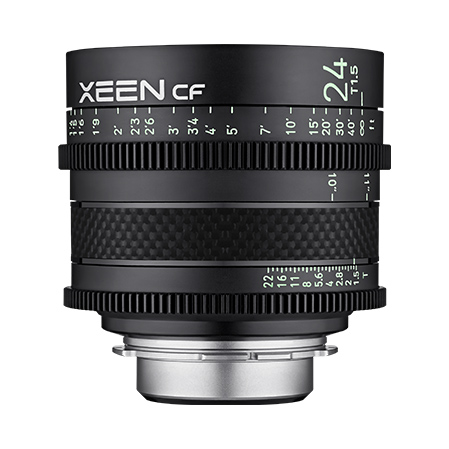

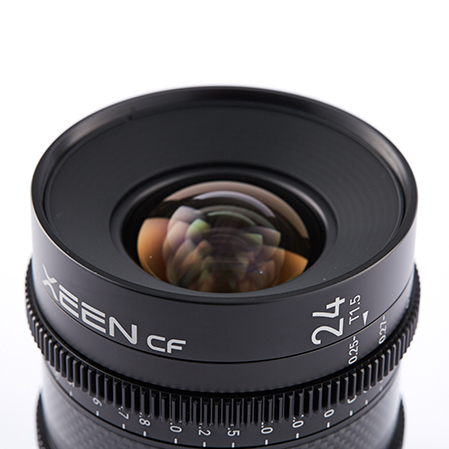

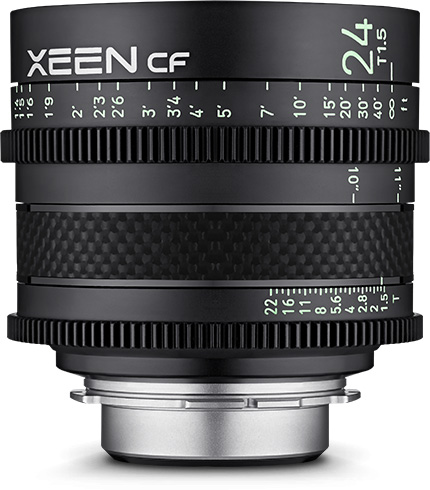

XEEN CF 24mm

XEEN CF 24mm Front

XEEN CF 24mm

XEEN CF

XEEN CF 24mm

XEEN CF 24mm

XEEN CF 24mm

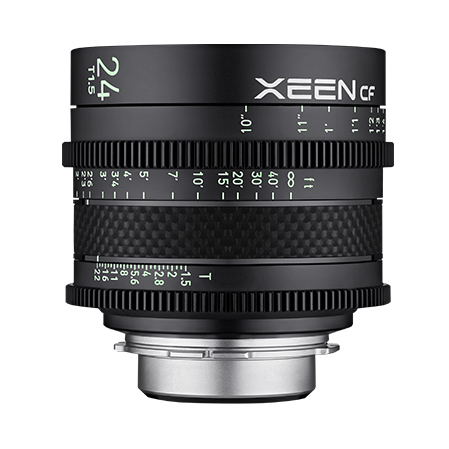

XEEN CF 24mm Side

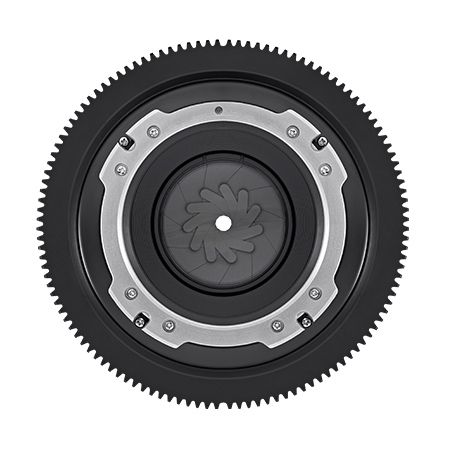

XEEN CF Aperture

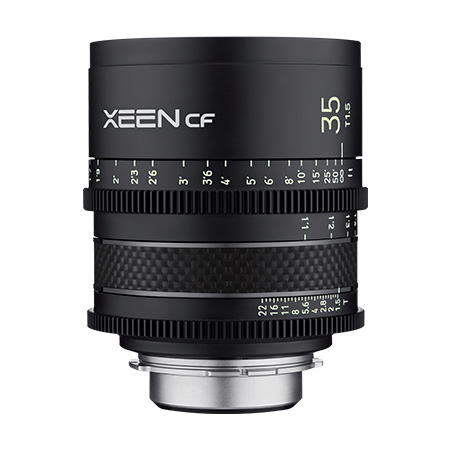

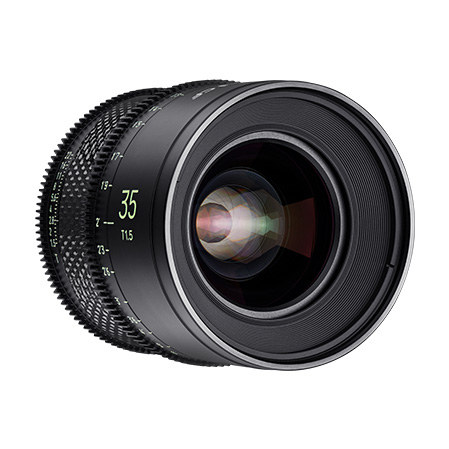

XEEN CF 35mm

XEEN CF 35mm Front

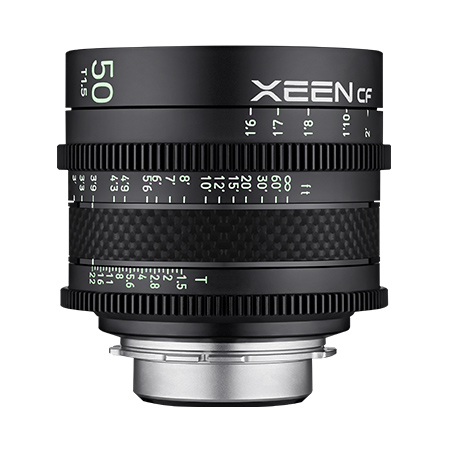

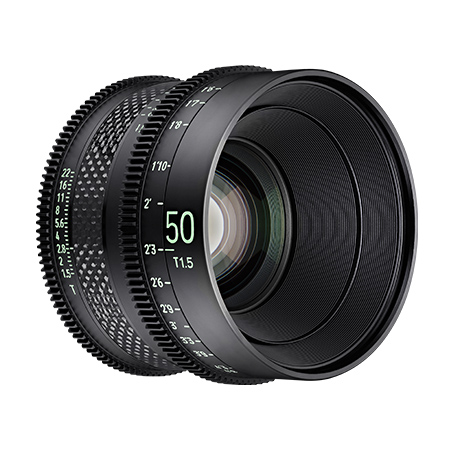

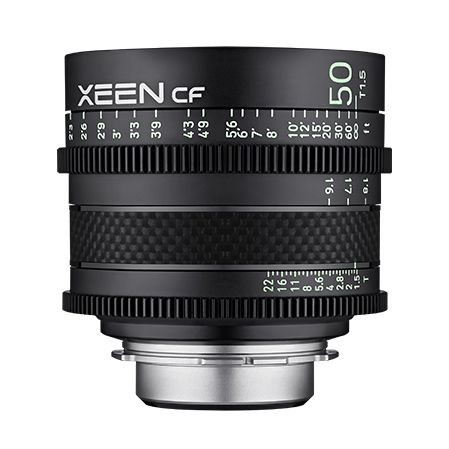

XEEN CF 50mm 45°

XEEN CF 50mm Front

XEEN CF 50mm Side

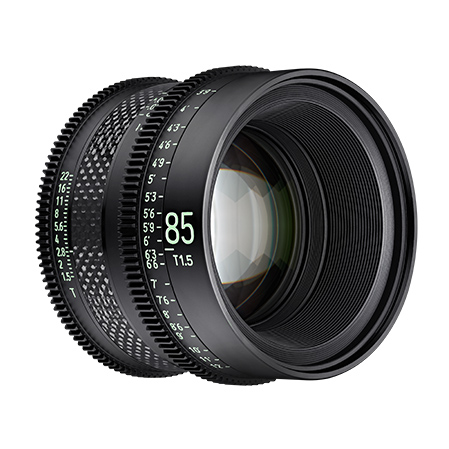

XEEN CF 85mm

XEEN CF 85mm Front

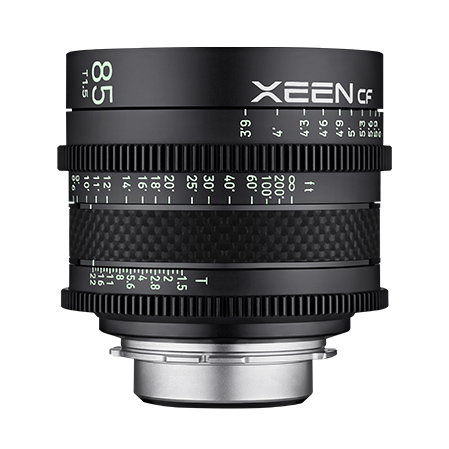

XEEN CF 85mm Side

XEEN CF

XEEN CF

XEEN CF

XEEN CF

XEEN CF

XEEN CF

LOOK & FEEL

QUOTES

QUOTES

BILL BENNETT (ASC - VICE PRESIDENT)

"THE NEW XEEN CF LENSES SHOW FACES IN A
MOST BEAUTIFUL WAY, WITH SMOOTH AND
SUBTLE TRANSITIONS."

QUOTES

STEVE GAINER (ASC ASK - CINEMATOGRAPHER)

"THE NEW XEEN CF LENSES SHOW FACES IN A
MOST BEAUTIFUL WAY, WITH SMOOTH AND
SUBTLE TRANSITIONS."

VIDEO ROOM

  • XEEN CF

    [Showreel] Look & Feel

  • XEEN CF

    [Interview] Steve Gainer, ASC

  • XEEN CF

    [Interview] Bill Bennett, Vice President of ASC

  • XEEN CF

    [Showreel] Full version

  • XEEN CF

    [Showreel] Short Ver. 1

  • XEEN CF

    [Showreel] Short Ver. 2

  • XEEN CF

    [Showreel] Behind the scene

XEEN CF SPECIFICATIONS

XEEN CF Specifications
Model Name XEEN CF 16mm T2.6 XEEN CF 24mm T1.5 XEEN CF 35mm T1.5
Maximum T-stop T2.6 T1.5 T1.5
Image Circle Ø 43.3mm Ø 43.3mm Ø 43.3mm
Angle of View Full Frame 107.0° 84.1° 63.1°
Super 35 87.4° 61.2° 46.9°
Focusing Range ∞ to 0.30 m ∞ to 0.25 m ∞ to 0.33 m
∞ to 1’ ft ∞ to 10” ft ∞ to 1’ 1” ft
Front Diameter Ø 95 mm Ø 95 mm Ø 95 mm
Number of Aperture Blades 11 11 11
Rotation Angle of Focus Ring 200° 200° 200°
Rotation Angle of Aperture Ring 32.5° 40° 40°
Mount PL Canon EF Sony E PL Canon EF Sony E PL Canon EF Sony E
Size Ø100.0 x 82.3 mm Ø100.0 x 90.3 mm Ø100.0 x 116.3 mm Ø100.0 x 90.5 mm Ø100.0 x 98.5 mm Ø100.0 x 124.5 mm Ø100.0 x 113.7 mm Ø100.0 x 121.7 mm Ø100.0 x 147.7 mm
Weight (without Lens cap) 0.9 kg / 2.0 lbs 0.9 kg / 2.0 lbs 1.0 kg / 2.2 lbs 0.9 kg / 2.0 lbs 0.9 kg / 2.0 lbs 1.0 kg / 2.2 lbs 1.1 kg / 2.4 lbs 1.1 kg / 2.4 lbs 1.2 kg / 2.6 lbs
XEEN CF Specifications
Model Name XEEN CF 50mm T1.5 XEEN CF 85mm T1.5
Maximum T-stop T1.5 T1.5
Image Circle Ø 43.3mm Ø 43.3mm
Angle of View Full Frame 46.2° 28.4°
Super 35 31.2° 19.0°
Focusing Range ∞ to 0.45 m ∞ to 1.12 m
∞ to 1’ 6” ft ∞ to 3’ 9” ft
Front Diameter Ø 95 mm Ø 95 mm
Number of Aperture Blades 11 11
Rotation Angle of Focus Ring 200° 200°
Rotation Angle of Aperture Ring 40° 40°
Mount PL Canon EF Sony E PL Canon EF Sony E
Size Ø100.0 x 90.5 mm Ø100.0 x 98.5 mm Ø100.0 x 124.5 mm Ø100.0 x 90.5 mm Ø100.0 x 98.5 mm Ø100.0 x 124.5 mm
Weight (without Lens cap) 0.9 kg / 2.0 lbs 0.9 kg / 2.0 lbs 1.0 kg / 2.2 lbs 1.0 kg / 2.2 lbs 1.0 kg / 2.2 lbs 1.1 kg / 2.4 lbs
